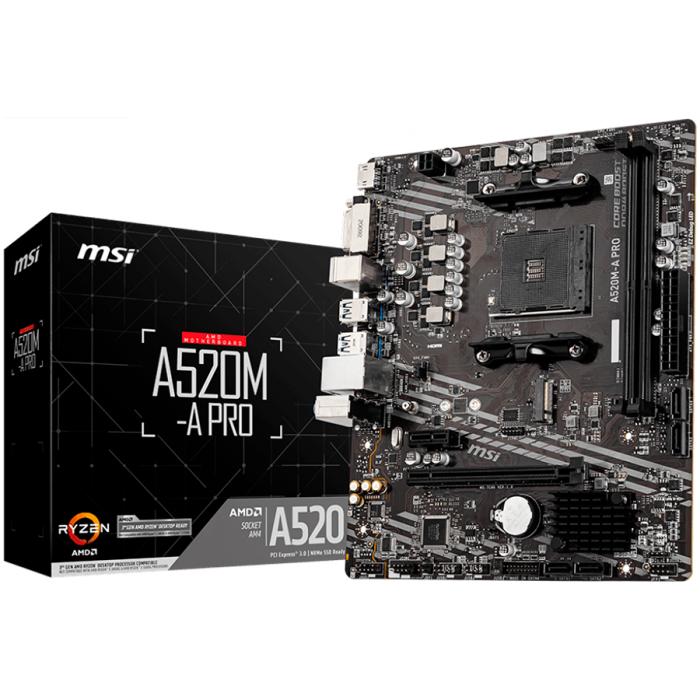

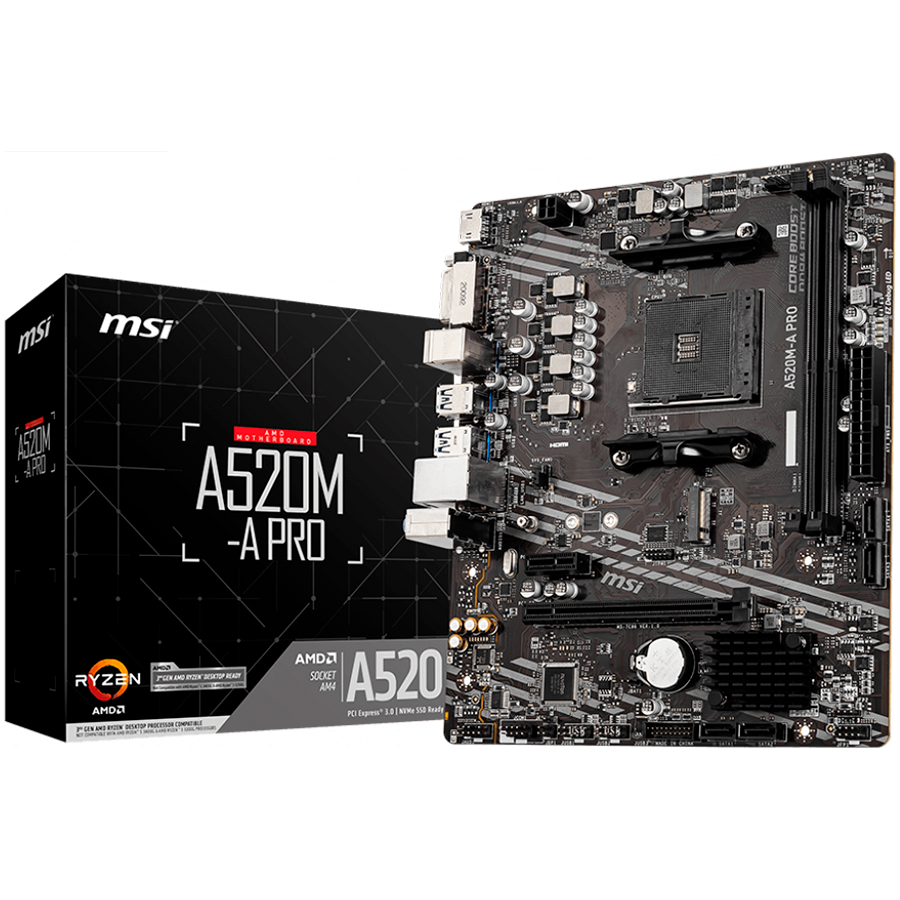

MSI Main Board Desktop A520M (AM4, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, M.2, 4xSATA3, 6xUSB3.2 Gen1, 6xUSB2.0, HD Audio, DVI-D, HDMI, GLAN) mATX Retail

MSI
253,16 RON
100 In stoc

Data de livrare: maine, 05.03.2026

Limita stoc
Adauga in cos
Cod Produs: A520M-A_PRO Ai nevoie de ajutor? 0245210105
Adauga la Favorite Achiziție prin SEAP/SICAP
  • Descriere
  • Specificații
  • Review-uri (0)
Main Board Desktop - Processor
Chipset:

AMD A520
Prevazut cu CPU:

AMD Ryzen Series
Standard soclu procesor (CPU):

Socket AM4
CPU capacitate maxima suportata:

1
Main Board Desktop - Memory
Tip memorie:

DDR4 SDRAM
Factor de Forma a memoriei:

DIMM 288-pin
Viteza de memorare:

1866MHz(PC4-14900)

2133MHz(PC4-17000)

2400MHz(PC4-19200)

2667MHz(PC4-21300)

2800MHz(PC4-22400)

2933MHz(PC4-23400)

3000MHz(PC4-24000)

3200MHz(PC4-25600)
Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata:

64 GB
Cantitatea totala de sloturi de memorie:

2
Ofera metode de corectie a erorilor:

non-ECC
Caracteristici memorie:

Two DDR Channels

Unbuffered

Dual Rank

Single Rank

XMP
Controller
Integrated:

Storage Controller:

Supports: Level 0, Level 1

PCIe/SATA (1 x M.2 (Key M))

Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (4)

Main Board Desktop - Audio Output
Audio Integrated:

yes
Locatia dispozitivului:

Integrated
Audio Chipset:

Realtek ALC892/ALC897
Audio Output Mode:

7.1 Channel Surround
Standard Audio:

High Definition Audio
Main Board Desktop - Networking Specifications
LAN Integrated:

yes
LAN Chipset:

Realtek RTL8111H
Suport protocol legatura date:

Gigabit Ethernet/Fast Ethernet/Ethernet
Slot
PCI Express x16:

1
PCI Express 3.0 x1:

1
Interface Provided
LAN:

1 (RJ-45)
HDMI:

1 (HDMI (Type A))
DVI:

1 (DVI-D)
USB 3.2 Gen 1:

4 (USB 3.2 (type A))
USB 2.0:

2 (USB 2.0 (type A))
Audio Interface:

3 (3.5-mm minijack)
PS/2:

2
Miscellaneous
Cabluri incluse:

2 x SATA 6Gb/s Cables
Accesorii incluse:

I/O Shield

User Guide

Driver CD
Main Board Desktop - Dimensions&Weight
Factor de forma:

Micro ATX
Inaltime:

200 mm
Latime:

236 mm
Informatii conformitate produs
Chipset: AMD A520
Prevazut cu CPU: AMD Ryzen Series
Standard soclu procesor (CPU): Socket AM4
CPU capacitate maxima suportata: 1
Tip memorie: DDR4 SDRAM
Factor de Forma a memoriei: DIMM 288-pin
Viteza de memorare: 1866MHz(PC4-14900)
2133MHz(PC4-17000)
2400MHz(PC4-19200)
2667MHz(PC4-21300)
2800MHz(PC4-22400)
2933MHz(PC4-23400)
3000MHz(PC4-24000)
3200MHz(PC4-25600)
Capacitatea maxima de stocare a memoriei sistem ce poate fi instalata: 64 GB
Cantitatea totala de sloturi de memorie: 2
Ofera metode de corectie a erorilor: non-ECC
Caracteristici memorie: Two DDR Channels
Unbuffered
Dual Rank
Single Rank
XMP
Integrated: Storage Controller:
Supports: Level 0, Level 1
PCIe/SATA (1 x M.2 (Key M))
Storage Controller:
Supports: Level 0, Level 1, Level 10
SATA III-600 (4)
Audio Integrated: yes
Locatia dispozitivului: Integrated
Audio Chipset: Realtek ALC892/ALC897
Audio Output Mode: 7.1 Channel Surround
Standard Audio: High Definition Audio
LAN Integrated: yes
LAN Chipset: Realtek RTL8111H
Suport protocol legatura date: Gigabit Ethernet/Fast Ethernet/Ethernet
PCI Express x16: 1
PCI Express 3.0 x1: 1
LAN: 1 (RJ-45)
HDMI: 1 (HDMI (Type A))
DVI: 1 (DVI-D)
USB 3.2 Gen 1: 4 (USB 3.2 (type A))
USB 2.0: 2 (USB 2.0 (type A))
Audio Interface: 3 (3.5-mm minijack)
PS/2: 2
Cabluri incluse: 2 x SATA 6Gb/s Cables
Accesorii incluse: I/O Shield
User Guide
Driver CD
Factor de forma: Micro ATX
Inaltime: 200 mm
Latime: 236 mm
Produse returnabile aflate in garantie: Yes
Termen de garantie: 36 luni
Criterii de validare a garantiei: Serial Number
Adancime pachet: 236 mm
Grosimea pachetului: 200 mm
Inaltime pachet: 70 mm
Greutatea neta a pachetului: 0.635 kg
Bucati in pachet: 1
Greutatea bruta a cutiei: 1 kg
Retail Packaging Net Weight Carton: 0.1 kg
Retail Packaging Net Weight Plastic: 0.1 kg
Pachete (colete) in cutie: 1
Tip pachet: Retail
